What Is Translatory Motion?

Introduction

Characteristics of translatory motion

Types of translatory motion

Rectilinear motion

Characteristics of rectilinear motion

Types of rectilinear motions

? Uniform rectilinear motion

? Non-uniform rectilinear motion

Curvilinear motion

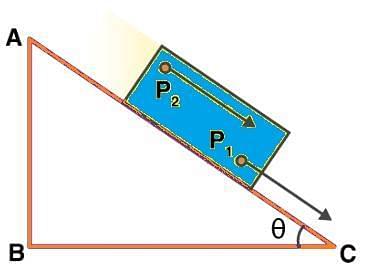

When all points of a moving body move with the same uniform speed in the same direction the object is said to be in translatory motion. When in translatory motion, the object's orientation, acceleration, trajectories and velocity remain unchanged, hence, it is also called linear motion. Some examples of translatory motion are a bullet shot from the gun, a pawn struck on the carrom board, an arrow shot from the bow etc.

Example of translatory motion

A car driving on a straight road: Every part of the car (like its wheels, seats, etc.) moves the same distance forward.

All parts move the same distance: Every part of the car, whether it's the tires, doors, or passengers inside, covers the same distance along the road.

Direction remains consistent: In this case, the car is moving forward along a straight path, so the motion is linear.

No rotation relative to the car's body: Even though the wheels rotate, they still carry the car forward without causing the rest of the car to spin. This keeps the overall motion translatory

Characteristics of translatory motion

The three remarkable characteristics of translatory motion are -

• Constant speed: The object in translatory motion moves constantly from one point to the next.
• Linear displacement: The object moves along a straight line, maintaining a constant direction from the starting point to the endpoint.
• No rotation: The object maintains a fixed orientation throughout its movement with every point on the object moving parallel to one another.
• Uniform or non-uniform motion: Translatory motion can be uniform, with the object covering equal distances in equal intervals, or non-uniform, with the object covering unequal distances in equal intervals.
• The direction of motion: The direction of motion remains constant in rectilinear translatory motion, but it changes continuously in curvilinear translatory motion.
• Velocity and acceleration: all points on the object in translatory motion have the same velocity and acceleration at any instant.

  Types of translatory motion

Based on the object’s movement there are two types of translatory motion -

• Rectilinear motion
• Curvilinear motion

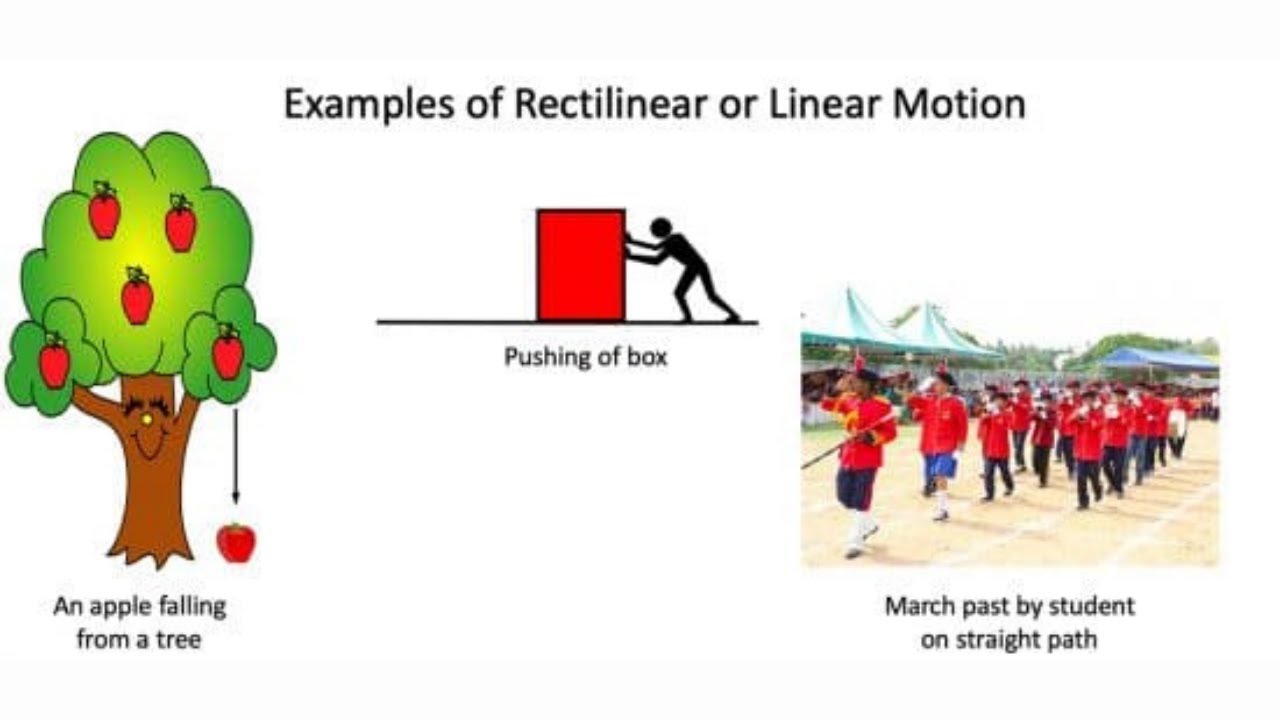

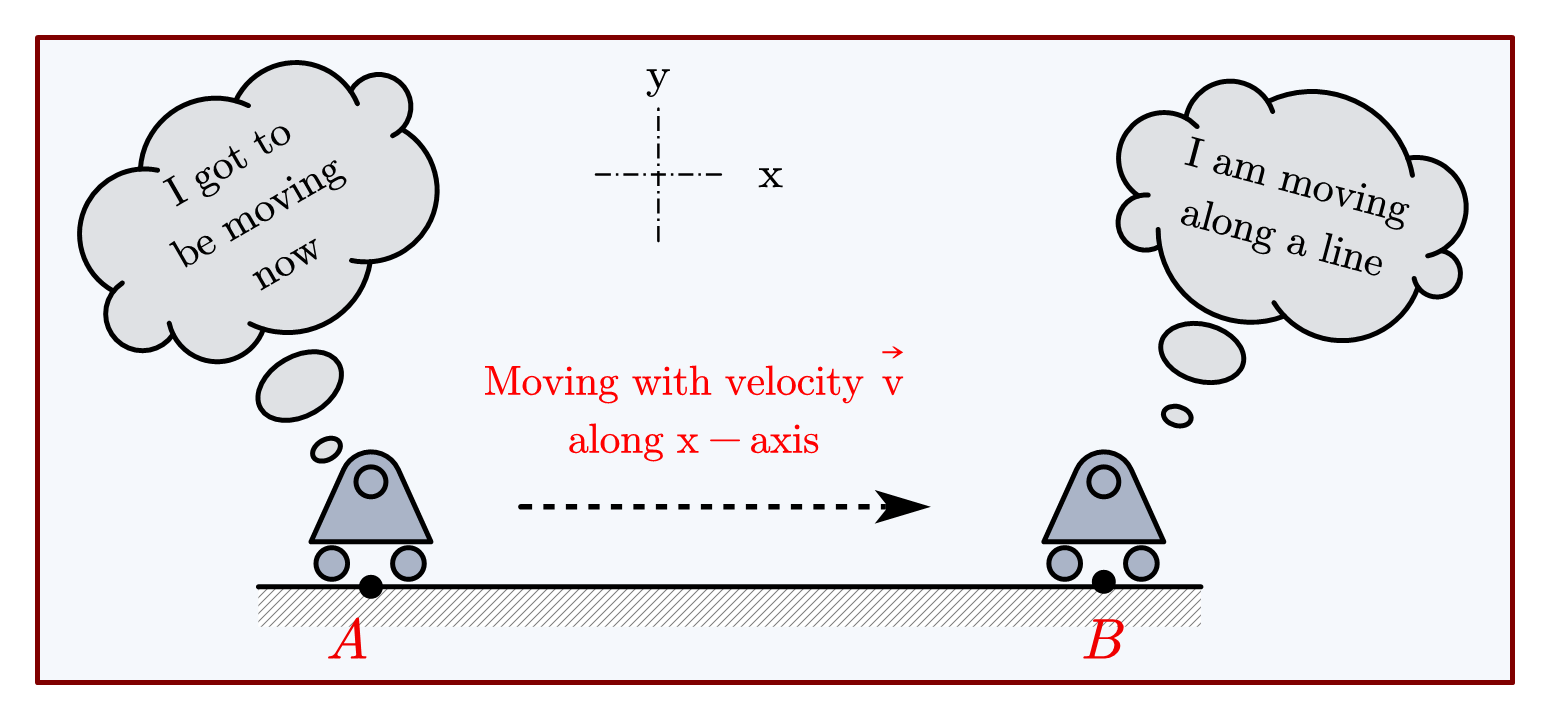

Rectilinear motion

The motion of an object along a straight line is called rectilinear motion. In the rectilinear motion, the object’s position changes with respect to time but its path follows a single dimension and remains linear. We observe rectilinear motion when an object falls from the force of gravity, a train travelling on a straight track and a rocket ascends vertically before reaching escape velocity.

Example for Rectilinear motion

A person walking on a straight path: The person moves in a straight direction, covering equal distances in equal intervals of time if walking at a steady speed.

Characteristics of rectilinear motion

• The object moves in a straight line, without any deviations.
• The object moves along a straight line with uniform speed, covering equal distances and time intervals.
• The motion can be in any direction along the straight line or perpendicular to it.
• No external forces can change the object’s motion except forces like friction.

Types of rectilinear motions

There are two types of rectilinear motion -

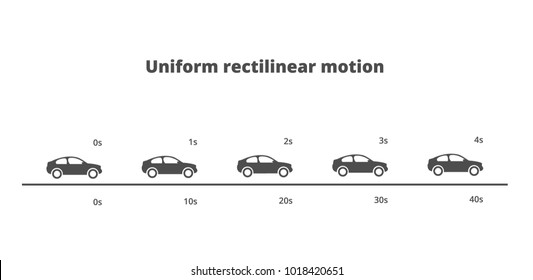

• Uniform rectilinear motion

The uniform rectilinear motion occurs when an object moves along a straight path with constant velocity. For instance, a car moving on a straight road at a uniform speed. Its characteristics are -

1. Linear part - the motion always occurs in a straight line
2. Constant velocity - the object moves at a constant speed and direction
3. No acceleration - there is no acceleration as velocity remains constant

Example for uniform rectilinear motion

A car cruising on a straight highway at a constant speed of 60 km/h.

• Non-uniform rectilinear motion

A non-uniform rectilinear motion occurs when an object moves along a straight path with changing velocity. For instance, a car moving on a straight road and the speed varies due to acceleration or slowing of speed. Its characteristics are -

1. Linear path - the motion occurs along a straight line
2. Changing velocity - the object’s speed or direction changes over time
3. Variable acceleration - the change in velocity can be positive, negative or zero.

Example for non-uniform rectilinear motion

A car driving on a straight road in traffic: The car speeds up, slows down, or stops occasionally due to traffic signals or congestion.

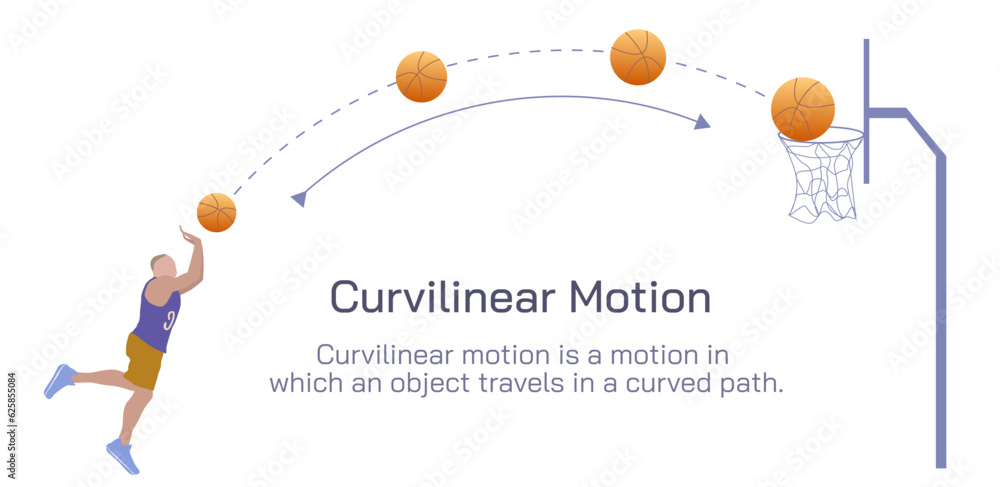

Curvilinear motion

Curvilinear motion occurs along a curved path, following a trajectory represented by a curve. The direction of motion changes continuously as the object moves because the direction of velocity is continuously changing which results in acceleration. Thus, all curvilinear motion is accelerated motion.

Examples of Curvilinear Motion:

A ball thrown in the air (projectile motion) or snake or train in curved railway tracks. The characteristics of curvilinear motion are -

• The direction of acceleration is not aligned with the direction of the motion.
• It can be described in two or three dimensions.
• Position, velocity and acceleration equations become complex.
• The object follows a curved trajectory which can be parabolic, circular or any other type of curve.
• The object’s velocity is tangent to the curve at any point.
• The net force acts on the object to maintain its curvilinear motion.

Translatory motion is a fundamental physics concept that describes an object’s motion from one point to another in a linear trajectory. It is the simplest type of motion and the object moves without rotation or deformation.
